Standard Handset for Armored Phones - HS-CAR
Standard Handset for Armored Phones - HS-CAR

Alternative Views:




Free Shipping
Product Code: HS-CAR


Wiring:


Length:


Call 800-525-4300 or email [email protected] for a quote.
Description

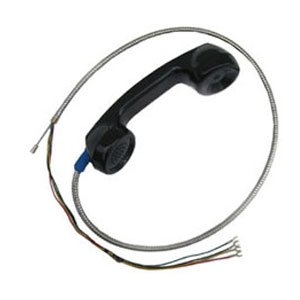

The G-Tel Standard Carbon Handset features a high-quality receiver and standard Carbon microphone. The handset is constructed of durable ABS plastic combined with a high strength stainless cord and steel lanyard. Ideal for locations prone to vandalism and compatible with most Carbon-based telephone devices.

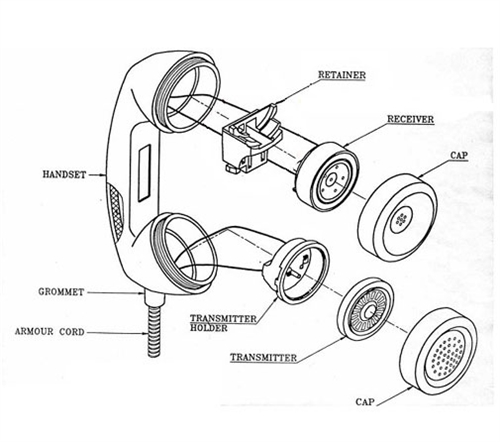

Each handset consist of the following elements:

  • Handset type: Standard Receiver and Standard Carbon Transmitter
  • Handset handle and cap material: ABS
  • Wiring: Four 24 gauge Teflon insulated wires (2 for receiver, 2 for transmitter), with single modular plug (Optional 4 spade conductors)
  • Armored Cord Assembly.: 304 Stainless Steel, Interlock style. Inside Diameter, 0.250", 6.350mm. Outside Diameter, 0.329", 8.357mm. Linear Pull Test Load, 1000 lbs., 454 kg
  • Includes steel lanyard which is anchored to handset handle. Steel lanyard has a pull test load of approx. 550 lbs, 250 kgs.
  • Optional colors available, please inquire.
  • Other Components: lanyard block retainer; anti-rotation wedge; transmitter holder; blue rubber grommet to seal handset/cord connection

Features
    • Standard Receiver:
      • DC Resistance at 20 degress C : 145 ± 15 ohm
      • Frequency Response Range: 300-3400 Hz
      • Sensitivity: 100 ± 2 dB at 60mv
      • Impedance: 150 ± 30 ohm at 1 KHz
    • Standard Carbon Transmitter:
      • Type : Carbon Granule
      • Response Range: 300-3400 Hz
      • Moveable Resistance : 25-80
